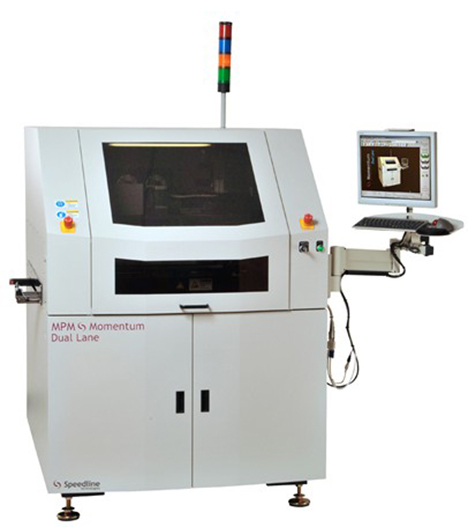

BRAND：

MPM

MODEL：

Momentum

SPECIFICATIONS：

Max Size：609.6mm * 508mm

Min Size：50.8mm * 50.8mm

Max Weight：4.5KG

Board Hold-Down：

Fixed top clamps

center vacuum

Print Speed：

Up to 305 mm/sec

Print Force：

0-20KG

Print Gap (Snap-off)：

0mm - 6.35mm

Total System Alignment：

±12.5um

Accuracy and Repeatability：

±25un

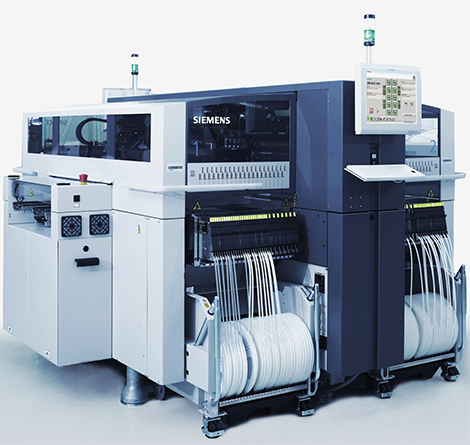

MODEL

SIPLACE D1i

BRAND

SIPLACE - 原SIEMENS

Number of gantries

1

IPC value

13.000 cph

SIPLACE SIPLACE benchmark

15.000 cph

Theoretical value

20.000 cph

Component spectrum(mm²)

01005 to 200x125(mm²)

Placement Head Features

12 nozzle Collect&Place head

Placement accuracy

± 50 μm/3σ/± 0,225 μm/3σ

Conveyor types

SIPLACE single transport, flexible SIPLACE dual transport

Conveyor modes

Asynchronous, synchronous

PCB format

50 x 50 mm² 到 610 x 508 mm²

PCB thickness

0.3 to 4.5 mm² (others available upon request)

Feeder positions

90 tracks with 3 x 8 mm S-feeders
