L218 Introduction
Summary
L218 is a low power and high performance four frequency GSM/GPRS (850/900/1800/1900) module, and integrates high-performance global positioning navigation Chip. The utility model has the advantages that the LCC package is easy to be welded, and the rapid production of the module can be realized through the standard SMT device Demanding applications.
L218 has a very small package, a wide range of operating temperature and internal integration of the TCP/IP protocol and fast positioning function. Especially suitable for size Sensitive tracking devices and other applications requiring location.
Characteristic
Main features
Four frequency
850/900/1800/1900 MHZ
compatible GSM Phase 2/2+
Class 4(2W @850/900 MHZ)
Class 1(1W @1800/1900 MHZ)
AT command
GSM 7.07, 7.05, and enhanced AT commands
GNSS
GPS/The 2 generation(GLONASS)
Supply voltage
3.4 ~ 4.2V (Recommend3.8V)
Operating temperature
-40 ~ +85℃)
Storage temperature
-45 ~ +90℃

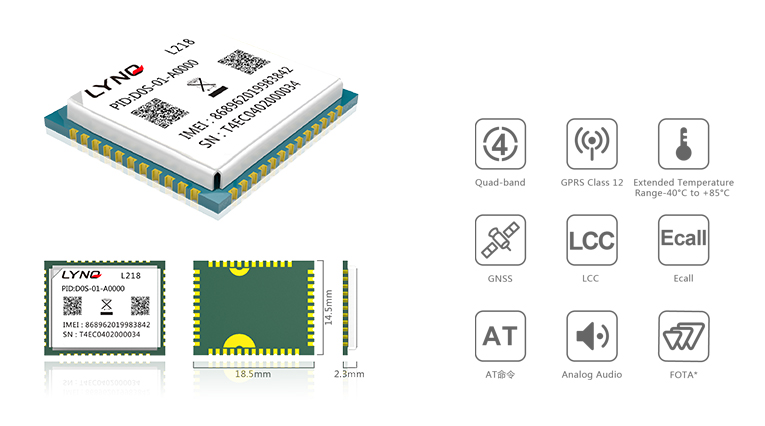

size
14.5*18.5*2.3mm
weight
About 1.5 grams
data transmission
GPRS CLASS 12
Max 85.6 kbps
Coding schemes2
CS 1,2,3,4
Support protocol
TCP/UDP/HTTP/SMTP*
Support USSD
SupportPPP-stack
Support transmission
Short message
Short message
Point to pointMO and MT
SMS broadcast
Text and PDU mode
Voice
Half rate（HR)
Full rate（FR)
Enhanced full rate（EFR)
amr（AMR)
GNSS characteristics
Receiving channel
33 tracking, 99 capture
Maximum update rate
10HZ
sensitivity
Tracking sensitivity -165dBm
Recapture -160dBm
Cold start capture -148 dBm
First positioning time
Cold boot: 31s
Warm start: 26s
Hot start: <1s
EPO Auxiliary cooling: 13s
positioning accuracy
static state: 2.5m
speed: 0.1m/s
Interface
Two way analog voice interface
PCM digital audio interface
Two way UART interface
I2C interface
SIM card interface (3V/1.8V)
One way ADC interface
GPIO Interface
Other features
FOTA*
ECALL
TTS
Authentication
CCC/TA/CE/FCC/ROHS
