L100 Introduction
Overview

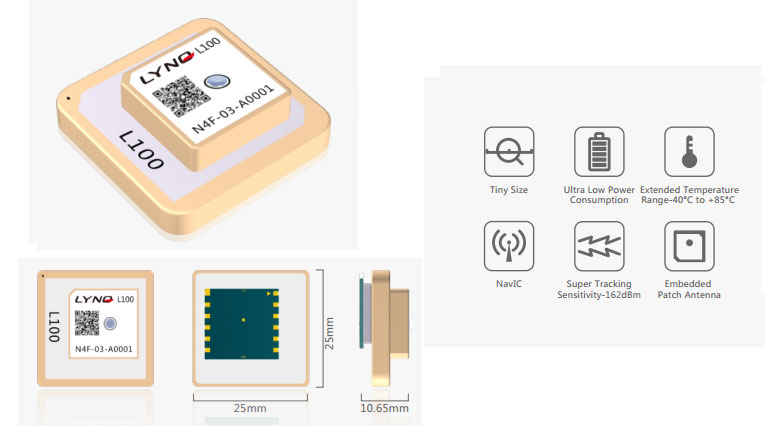

L100 is an ultra-compact POT(Patch on Top) GPS+NavIC module. This is a standalone GNSS module in a SMT type base on ST high sensitivity navigation engine. It has tiny package and extremely low power consumption makes it easier to be applied to power sensitive devices.
Feature
Main Features
Support GPS+NavIC
Support STAGNSSTM orbit prediction
Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
Low-noise amplifier has been integrated
Module Dimensions: 16.00*18.00*2.45 mm
Patch Dimensions: 25.0*25.0*4.0mm+15.0*15.0*4.0mm
Weight: about 20g/ 5g without Antenna
Operation temperature: -40℃~+85 ℃
Power Management
Power supply
+3.3V
Backup power
+1.6V ~+4.3V
Power consumption
Acquisition: 97.4mA
Tracking: 87.7mA
Sleep: TBD
Backup: TBD
Tracking: 87.7mA
Sleep: TBD
Backup: TBD
Antenna type
Embedded
Interface
Serial interfaces
UART
Digital I/O
PPS
WAKEUP
RESET
ANT_DET
STDBYN
WAKEUP
RESET
ANT_DET
STDBYN
Protocols
NMEA
PSTM
PSTM
Performance data
Receiver type
48 tracking channel/2 fast acquisition channels
NMEA update rate
1Hz
Sensitivity
Tracking: -162 dBm
Reacquisition: -150 dBm
Cold starts: -146 dBm
Reacquisition: -150 dBm
Cold starts: -146 dBm
Time-To-First-Fix without STAGNSS TM
Cold starts: 32s (typical)
Warm starts: 30s
Hot starts: <1s
Warm starts: 30s
Hot starts: <1s
STAGNSS TM Assist
Cold starts:TBD (typical)
Warm starts: TBD
Hot starts: TBD
Warm starts: TBD
Hot starts: TBD
Accuracy
Automatic Position3: 2.5m CEP
Speed: 0.1m/s
Speed: 0.1m/s
