L630C Introduction
Overview

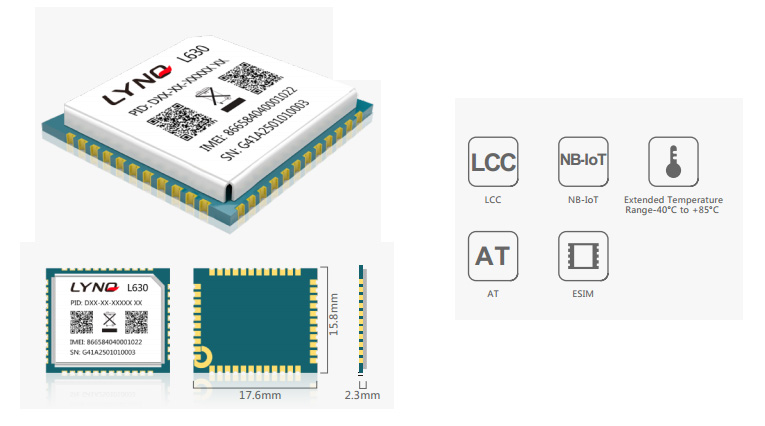

L630 is a NB-IoT module with excellent reliability, occupied small area. The size of L630 is only 15.8 x 17.6 x 2.3 mm with LCC package, It is cost competitive and high integrated which make it convenient for customer to design their own application products. It can be widely used for various products and equipment of IoT.
Feature
Main Features
Frequency Bands
L630-C
Support NB-IOT
B3/B5/B8
Support AT Command
Voltage range
3.4 ~ 4.2V (3.8V is recommended)
Operating temperature range
-40 ~ +85℃
Storage temperature range
-45 ~ +90℃
Dimensions
15.8mmX17.6mmX2.3mm
Packaging
LCC
Weight
Approx 1 g
Specifications for Data transfer
CAT-NB1
Max. 66Kbps(UL)
Max. 34Kbps(DL)
Max. 34Kbps(DL)
Interfaces
UART
USIM(3V/1.8V)
GPIO
ADC
I2C
POWER KEYT
RESET
Main antenna
Other Features
TCP/UDP/FTP/HTTP/SSL
MQTT/CoAP
ONENET
Certification
SRRC/CTA/CE*/RoHS*/CMCC/CT/CU
