L306Mini PCIe
Overview
L306 Mini PCIe is a UMTS/HSPA+ module for
Mini PCIe package, with stable and reliable
performance.
It supports UMTS/HSDPA/
HSUPA900 (850)/2100(1900) and can be
compatible with existing GSM/GPRS/EDGE
networks.

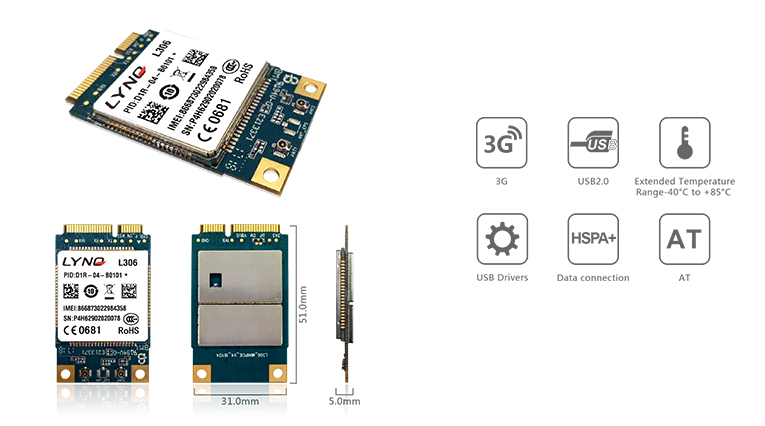

L306 Mini PCIe size is 51*31*5.0mm. It has rich extensible interfaces (USB, UART, PCM, ect ) and functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8, Linux, Android), which can be widely used in various kinds of products and equipments with wireless internet functions.
Feature
General Features
L306E Mini PCIe
UMTS/HSPA+ 900/2100MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz
L306A Mini PCIe
UMTS/HSPA+ 850/1900MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz
L306G Mini PCIe
UMTS/HSPA+ 850/900/1700/1900/2100MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz
AT command
3GPP TS 27.007，ETSI TS 27.005 and enhanced AT Commands
Operation Temperature Range
-40°C to +85°C
Voltage range
3.0 to 3.6V (3.3V Typ)
Dimensions
51*31*5.0mm
Package
52- pin Mini PCIe
Weight
Approx 11g
Specifications
GPRS
Multi-slot Class 12
EDGE
Multi-slot Class 12
WCDMA PS
UL 384Kbps/DL 384Kbps
HSDPA
DL MAX 14.4Mbps
HSUPA
UL MAX 5.76Mbps
Output power
UMTS 850/1900:0.25W
UMTS 900/2100:0.25W
GSM850/GSM900:2W
DCS1800/PCS1900:1W
Specifications for SMS
Short message
Peer-to-peer
Broadcast SMS
Text
PDU
Interfaces
UART
×1，High speed UART
USIM
×1，support1.8V/3V
USB 2.0 Device
High Speed，480Mbps
IIC
x1（optional）
PCM
Digital audio interface（optional）
Analog voice interface(default)
Network indicator interface
Other features
USB Drivers
Microsoft Windows XP/Vista/7/8, Linux and Android
Firmware Update
Firmware Updated via USB
Support Android RIL
Support TCP/IP
Support PPP in USB mode only
Certification
CCC/TA/CE/FCC/RoHS
