L600 Introduction
Overview

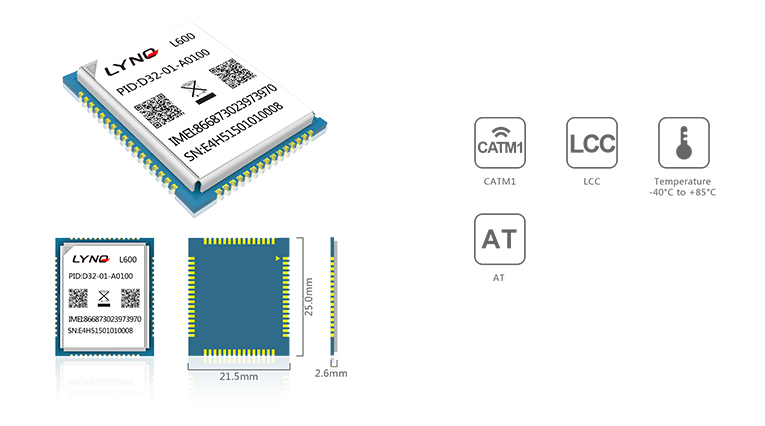

L600 is a LTE CatM1 module with excellent reliability, occupied small area base on industry-leading Qualcomm MDM9206 platform. The size of L600 is extremely small, it is only 21.5 x 25.0 x 2.6 mm with LCC package, It is cost competitive and high integrated which make it convenient for customer to design their own application products. It can be widely used for various products and equipment of IoT.
Feature
General Features
Frequency Bands
L600-V
Support LTE CatM1:B4/B13
L600-A
Support LTE CatM1:B2/B4/B12
L600-C
Support LTE CatM1:B1/B3/B8
L600-J
Support LTE CatM1:B1/B8/B18/B19
Support LTE CatM1:B4/B13
L600-A
Support LTE CatM1:B2/B4/B12
L600-C
Support LTE CatM1:B1/B3/B8
L600-J
Support LTE CatM1:B1/B8/B18/B19
AT command
3 GPP TS27.007, 27.005 and enhanced AT commands
Voltage range
3.4 ~ 4.2V (3.8V is recommended)
Operating temperature range
40 ~ +85℃
Storage temperature range
-45 ~ +90℃
Dimensions
21.5mmX25.0mmX2.6mm
Packaging
LCC
Weight
Approx 2 g
Specifications for Data
LTE-CATM1
Max. 1Mbps(UL)
Max. 1Mbps(DL)
Max. 1Mbps(DL)
Interfaces
UART
USIM(3V/1.8V)
GPIO
USB 2.0
ADC
SPI
I2C
PCM
NETLIGHT
POWER KEY
RESET
Other Features
Update firmware by USB
TCP/UDP/COAP/ FTP/HTTP/ SMTP
Certification
PTCRB*/FCC*/Verizon*/AT&T*
