M1505 Introduction
Overview

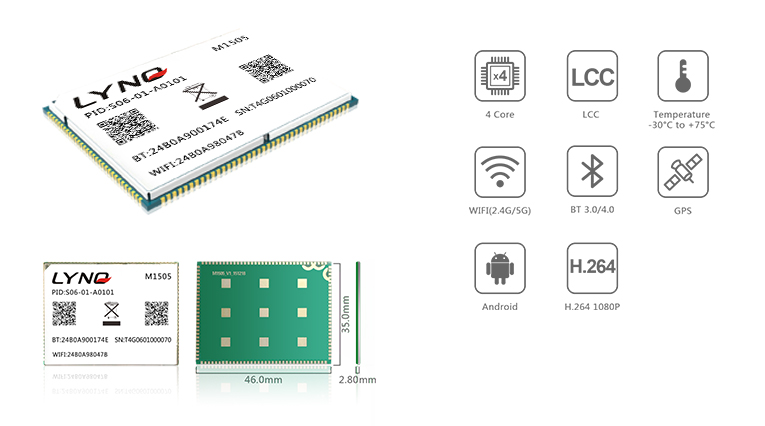

M1505 is a low power and high performance module. It is a Smart-based module with dual WIFI/BT/GPS/FM Receiver. It can fit application occasions that require android control center.
M1505 has tiny package and wide operating temperature. Its LCC package makes it easy to be soldered and produced quickly through standard SMT equipment. All of these features make it suit to industrial and domestic areas, such as home care device, automatic control device, etc.
Feature
General Features
OS
Android 5.1 (64bit)
Processor
Quad-core ARM@Cortex-A53，1.3GHz
Memory
8GB eMMC+1GB LPDDR3
Graphics
Mali-T720 MP2 @520MHz and 115Mtri/s, 1.0Gpix/s
Video
Decode：H.264 1080P@30fps/40Mbps
Encode: H.264 1080P@30fps
Encode: H.264 1080P@30fps
Audio
Sampling rates: 8kHz to 192kHz
Sampling formats: 16/24-bit, Mono/Stereo
Sampling formats: 16/24-bit, Mono/Stereo
Connectivity
WIFI: Support 802.11 a/b/g/n
FM: FM Receiver
Bluetooth: BT3.0/4.0
GPS: GPS
FM: FM Receiver
Bluetooth: BT3.0/4.0
GPS: GPS
Sensor
Support 12 bit tri-axis accelerometer
Features for User Peripherals
LCM
FWXGA 1366x768 60fps
TP
Capacitive
Front camera
5MP
Rear camera
13MP
Audio
3 differential MIC inputs, 1 output
Features for User Peripheral
Supply voltage
3.5 to 4.35V (4V recommended)
Package
135-pin LCC
I/O voltage
1.8 V
2 antenna PAD(SMD)
WIFI/BT, GPS
Dimensions
46.0 X 35.0 X 2.80 mm
Operating temperature range
-30 to +75℃
Storage temperature range
-40 to +85℃
Interfaces
TF card
USB 2.0 HS Peripheral (OTG)
USB HUB
IIS
4 UART
2 IIC
SPI
GPIO
EINT
KEY
