M1607 Introduction
Overview
M1607 is a low power and high performance module supporting 2G/3G/4G. It is a smartbased module with WIFI/BT/GNSS Receiver. It can fit application occasions that require android control center and data transfer. M1607 has tiny package and wide work temperature. Its LCC package makes it easy to be soldered and produced quickly through standard SMT equipment. All of these features make it suit to industrial and domestic areas, such as smart measurement, wireless POS, etc.
Feature
General Features
OS
Android 6.0 (32bit)
Processor
Quad-core ARM@1.3GHz Cortex-A53 MPcore
512KB unified L2 cache
Memory
8GB eMMC+1GB LPDDR3 （Optional 16GB+2GB）
Graphics
MaliT720-MP@450MHz and 3D/100M tri/sec,
900M pixel/sec
900M pixel/sec
Video
Decode H.264 1080P@30fps/40Mbps
Encode: H.264 1080P@30fps
Encode: H.264 1080P@30fps
Audio
Sampling rates: 8kHz to 192kHz
Sampling formats: 8/16/24-bit, Mono/Stereo
Speech codec (FR,HR,EFR,AMR FR,AMR HR and Wide Band AMR)
Sampling formats: 8/16/24-bit, Mono/Stereo
Speech codec (FR,HR,EFR,AMR FR,AMR HR and Wide Band AMR)
Band
WCDMA:Band1/8
FDD_LTE:Band1/3/5/8
TDSCDMA:Band34/39
TDD_LTE:Band38/39/40/41
GSM/GPRS/EDGE: Band 3/8
FDD_LTE:Band1/3/5/8
TDSCDMA:Band34/39
TDD_LTE:Band38/39/40/41
GSM/GPRS/EDGE: Band 3/8
Connectivity
WIFI: 802.11a/b/g/n
Bluetooth: BT3.0/4.0
GNSS: GPS/BEIDOU/Galileo/ Glonass
Bluetooth: BT3.0/4.0
GNSS: GPS/BEIDOU/Galileo/ Glonass
Sensor
Support 12 bit tri-axis accelerometer
Features for User Peripherals
LCM
FHD (1920*1080)
TP
Capacitive
Front camera
5MP
Rear camera
13MP
Audio
1 differential MIC input, 1 output
Specifications
Voltage range
3.50 to 4.35V (4V recommended)
I/O voltage
1.8V
Package
150-pin LCC
Operating temperature range
-30 ~ +75℃
Storage temperature range
-40 ~ +85℃

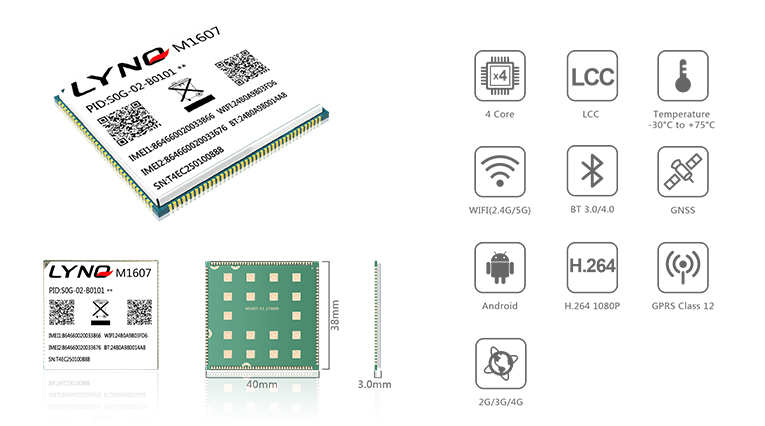

Dimensions
40.0mm x 38.0mm x 3.0 mm
4 antenna PAD(SMD)
WIFI/BT, GNSS, RF Main antenna, RF MIMO antenna
Interfaces
2 SIM card (3.0V/1.8V)
TF card
USB 2.0 HS Peripheral (OTG)
4 UART
4 IIC
SPI
ADC
GPIO
EINT
Key
Battery charge
