N20A Introduction
Overview
N20A is a small, high performance and automatic assisted GNSS module. It is based on MTK high sensitivity navigation system, supporting dual-star. It is reliable and can be used steadily for 5-10 years during -40~85℃. It has tiny package and extremely low power consumption, which makes it easier to be applied to power sensitive devices.
Feature
General Features
Support EPO™ orbit prediction
Support EASY™ self-generated orbit prediction
Support GPS/Galileo/Glonass/BD2
Support SBAS ranging
WAAS, EGNOS, GAGAN, MSAS
Built-in LNA

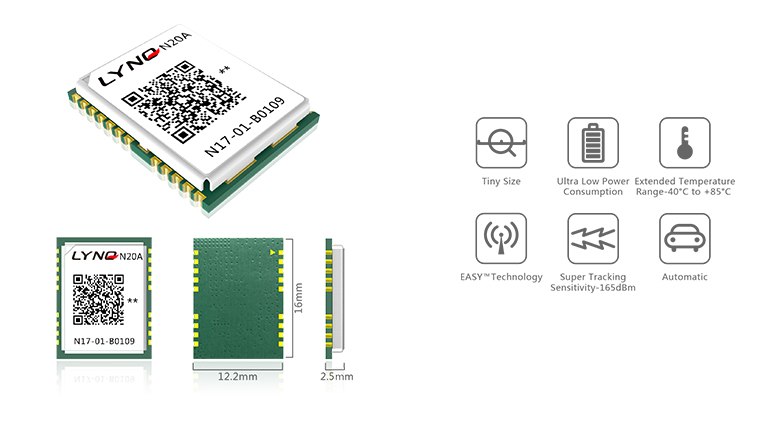

Dimensions
16*12.2*2.5mm
Weight
<1g
Operation temperature
-40°C ~ +85°C
Specifications
Power supply
+3.1V ~4.3V
Backup power
+2.0V ~4.3V
Power consumption
Acquisition: 25mA
Tracking: 22mA
Sleep: 340μA
Backup: 14μA
Antenna type
Active and Passive
Antenna power
External
Interfaces
Serial interfaces
UART
Digital I/O
PPS
INT Input
GPIO
Protocols
NMEA
PMTK
Performance data
Receiver type
33 tracking / 99 acquisition- channel GNSS receiver
Maximum update rate
10Hz
Sensitivity
Tracking: -165 dBm
Reacquisition: -160 dBm
Cold starts: -148 dBm
Time-To-First-Fix
Cold starts: 25s (typical)
Warm starts: 23s
Hot starts: <1s
EPO Assist: 15s (CTTFF)
Accuracy
Automatic Position: 2.5m CEP
Speed: 0.1m/s
Certification
AEC-Q100/Q101/Q200
