M1507 Introduction
Overview

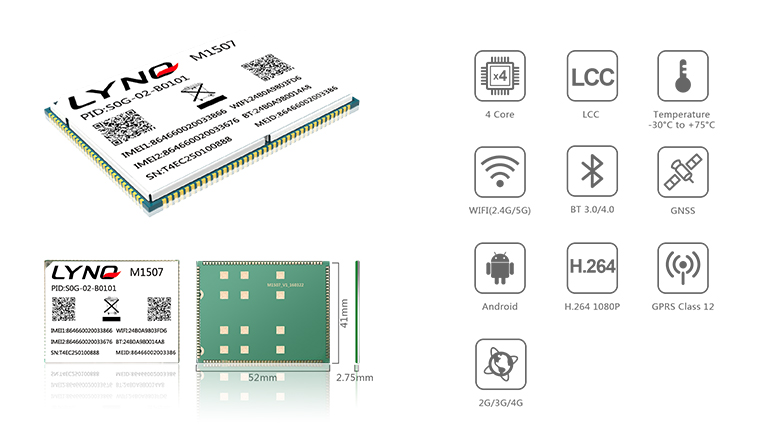

M1507 is a low power and high performance module supporting 2G/3G/4G. It is a smart-based module with WIFI/BT/GNSS/FM Receiver. It can fit application occasions that require android control center and data transfer.
M1507 has tiny package and wide work temperature. Its LCC package makes it easy to be soldered and produced quickly through standard SMT equipment. All of these features make it suitable to industrial and domestic areas, such as smart measurement, wireless POS, automatic device, etc.
Feature
General Features
OS
Android 6.0 (32bit)
Processor
Quad-core ARM@1.3GHz Cortex-A53 MPCore
512KB unified L2 cache
512KB unified L2 cache
Memory
8GB eMMC+1GB LPDDR3 （Optional 16GB+2GB）
Graphics
MaliT720-MP@450MHz and 3D/100M tri/sec,
900M pixel/sec
900M pixel/sec
Video
Decode H.264 1080P@30fps/40Mbps
Encode: H.264 1080P@30fps
Encode: H.264 1080P@30fps
Audio
Sampling rates: 8kHz to 192kHz
Sampling formats: 8/16/24-bit, Mono/Stereo
Speech codec (FR,HR,EFR,AMR FR,AMR HR and Wide BandAMR)
Sampling formats: 8/16/24-bit, Mono/Stereo
Speech codec (FR,HR,EFR,AMR FR,AMR HR and Wide BandAMR)
Band
WCDMA:Band1/2/5/8
FDD_LTE:Band1/3/7
TDSCDMA:Band34/39
TDD_LTE:Band38/39/40/41
GSM/GPRS/EDGE: Band2/3/5/8
CDMA2000（EVDO）: BC0
FDD_LTE:Band1/3/7
TDSCDMA:Band34/39
TDD_LTE:Band38/39/40/41
GSM/GPRS/EDGE: Band2/3/5/8
CDMA2000（EVDO）: BC0
Connectivity
WIFI: Support 802.11a/b/g/n
FM: FM Receiver
Bluetooth:BT3.0/4.0
GNSS: GPS/BEIDOU/Galileo/Glonass
FM: FM Receiver
Bluetooth:BT3.0/4.0
GNSS: GPS/BEIDOU/Galileo/Glonass
Sensor
Support 12 bit tri-axis accelerometer
Features for User Peripherals
LCM
FHD(1920x1080)
TP
Capacitive
Front camera
13MP
Rear camera
13MP
Audio
3 differential MIC inputs, 2 outputs
Specifications
Voltage range
3.5~4.35V(4V recommended)
I/O voltage
1.8V
Package
152-pin LCC
Operating temperature range
-30 ~ +75℃
Storage temperature range
-40 ~ +85℃
Dimensions
52.0mmX41.0mmX2.95mm
4 antenna PAD(SMD)
WIFI/BT, GNSS, RF Main antenna, RF MIMO antenna
Interfaces
2 SIM card (3.0V/1.8V)
TF card
USB 2.0 HS Peripheral (OTG)
PCM
IIS
4 UART
4 IIC
SPI
ADC
GPIO
EINT
Key
Battery charge
