M1503 Introduction
Overview

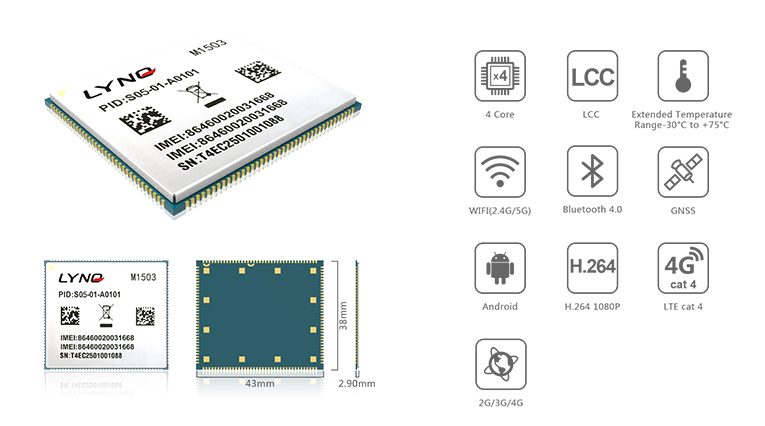

M1503 is a low power and high performance smart module supportin g 2G/3G/4G, It is based on qualcomm's msm8909 platform with WIFI/BT/GNSS/FM Receiver built in it. It can adapt to application occasions that require android control center and data transfer.
M1503 has tiny package and wide work temperature. Its LCC package makes it easy to be soldered and produced quickly through standard SMT equipment. All of these features make it suitable to industrial and domestic areas, such as smart measurement, wireless POS, etc.
Feature
General Features
OS
Android 6.0(32 位)
Processor
Quad-core ARM@Cortex-A7 MPCore
1.1GHz/512KB L2 cache
Memeory
RAM: 8Gb LPDDR3
ROM: 8GB eMMC
Graphics
Adreno 304;3D graphics accelerator Up to 400 MHz
Video
Encode: H.264 BP/MP -720p, 30fps
Decode: H.264 BP/MP/HP-1080P; 30fps
H.265 MP 8-bit 1080P;30fps
Audio
2 mic inputs, 3 outputs
LET CAT4
Support Band
FDD LTE:B1/B3/B7/B8/B20
TDD LTE:B38/B39/B40/B41
UMTS: B1/B2/B5/B8
TDSCDMA: B34/B39
CDMA: BC0
GSM: 850/900/1800/1900 MHz
Wireless connection
WIFI: 802.11 a/b/g/n;Dual-band 2.4 GHz and 5 GHz
FM: FM Receiver
Bluetooth: BT4.0(BR/EDR + BLE)
GNSS: GPS/BEIDOU/Galileo/GLONASS
Features for User Peripherals
Display screen
HD(720x1280)
Touch screen type
Capacitive touch screen
CAMERA
Front 2MP; Rear 8MP
KEY
Power key, Volume Up, Volume Down
Specifications
Voltage range
3.5-4.35V(3.8V is recommended)
Operating temperature range
-30 ~ +75℃
Storage temperature range
-40 ~ +85℃
Dimensions
38.0mmX43.0mmX2.9mm
Package
146-pin LCC
Weight
Approx 15 g
Interfaces
LCD（MIPI DSI）
Analog voice
2Camera(Front 1Lane, Rear 2Lane)
USIM (3 V / 1.8 V)
UART X2
GPIO
USB 2.0
ADC
SDIO
PCM
SPI
I2C
KEYPAD
Certification
CCC*/TA*//CE*
