L700 Introduction
Overview

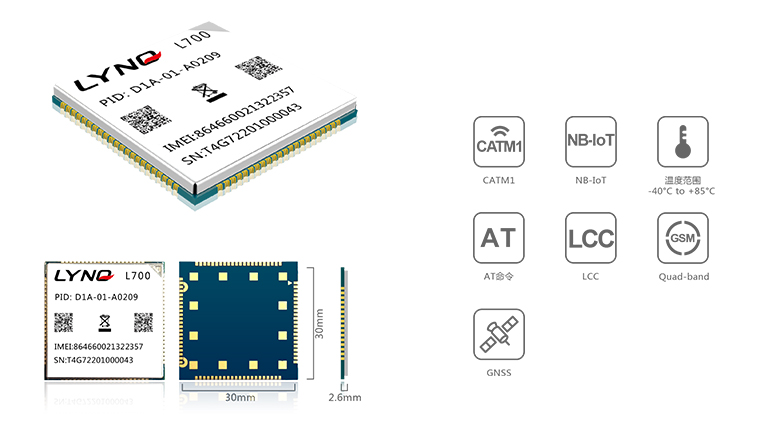

L700 is a IoT module with excellent reliability, occupied small area base on industry-leading Qualcomm MDM9206 platform, It supports LTE CAT-M1 and CAT-NB1,GSM/GPRS/EDGE.
The size of L700 is extremely small, it is only 30.0 x 30.0 x 2.6 mm with LCC package, It is cost competitive and high integrated which make it convenient for customer to design their own application products. It can be widely used for various products and equipment of IoT.
Feature
General Features
Support LTE CatM1
B1/B3/B8
Support NB-IOT
B3/B5/B8/B20
Support GSM
Quad-Band 850/900/ 1800/1900MHz
Support AT Command
Voltage range
3.4 ~ 4.2V (3.8V is recommanded)
Operating temperature range
-40 ~ +85℃
Storage temperature range
-45 ~ +90℃
Dimensions
30.0mmX30.0mmX2.6mm
Packaging
LCC
Weight
Approx 4 g
Specifications for Data
LTE-CATM1
Max. 1Mbps(UL)
Max. 1Mbps(DL)
CAT-NB1
Max. 150Kbps(UL)
Max. 150Kbps(DL)
EDGE Class
Max. 59.2Kbps(UL)
Max. 236.8Kbps(DL)
Interfaces
UART
USIM(3V/1.8V)
GPIO
USB 2.0
ADC
SPI
I2C
NETLIGHT
POWER KEYT
RESET
Other Features
Update firmware by USB
TCP/UDP/COAP/ FTP/HTTP/ SMTP
Certification
CCC*/TA*/ CE*/ROHS*/FCC*
