M1506 Introduction
Overview

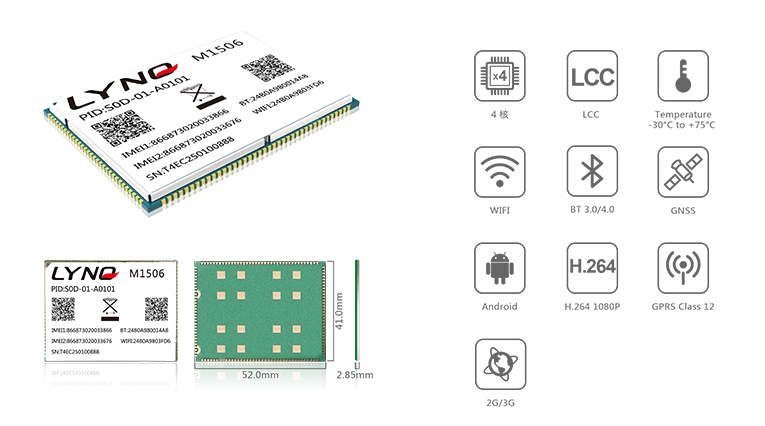

M1506 is a low power and high performance Smart module supporting 2G/3G. It has WIFI/BT/GPS/FM Receiver functions. It can fit application occasions that require android control center and data transfer.
M1506 has tiny package and wide work temperature. Its LCC package makes it easy to be soldered and produced quickly through standard SMT equipment. All of these features make it suitable to industrial and domestic areas, such as Smart measurement, wireless POS, etc.
Feature
General Features
OS
Android 6.0(32bit)
Processor
Quad-core ARM@Cortex-A7 MPCore
1.3GHz/512KB L2 cache
1.3GHz/512KB L2 cache
Memory
RAM: 1GB LPDDR3
ROM: 8GB eMMC
ROM: 8GB eMMC
Graphics
Mali400-MP2 500Mhz
OpenGL ES 1.1/2.0 3D accelerator/ 53.25Mtri/sec and
1000M pixel/sec@500MHz
OpenGL ES 1.1/2.0 3D accelerator/ 53.25Mtri/sec and
1000M pixel/sec@500MHz
Video
Decode: H.264 1080p@30fps
Encode: H.263/MPEG-4 1080P@30fps
Encode: H.263/MPEG-4 1080P@30fps
Audio
Sampling rates: 8kHz to 48kHz
Sampling formats: 8/16-bit
Speech codec (FR,HR,EFR,AMR FR,AMR HR)
Sampling formats: 8/16-bit
Speech codec (FR,HR,EFR,AMR FR,AMR HR)
Band
3G : 850/900/1900 /2100 MHz
2G : 850/900/1800/1900 MHz
2G : 850/900/1800/1900 MHz
Connectivity
WIFI: 802.11 b/g/n
FM: FM Receiver
Bluetooth: BT3.0/4.0
GNSS: GPS
FM: FM Receiver
Bluetooth: BT3.0/4.0
GNSS: GPS
Features for User Peripherals
LCM
HD(720*1280), MIPI
TP
Capacitive
CAMERA
8MP+5MP, MIPI
Audio
3 inputs, 2 outputs
Features for User Peripherals
Voltage range
3.5~4.35V(4.0V recommended)
Operating temperature range
-30 ~ +75℃
Storage temperature range
-40 ~ +85℃
Dimensions
41.0mmX52.0mmX2.85mm
Package
156-pin LCC
Interfaces
USIM X2 (3 V / 1.8 V)
UART X3
IIC X3
IIS
GPIO
EINT
USB 2.0
ADC
SDIO
SPI
KEY
