L610 Introduction
Overview
L610 is a NB-IOT module with excellent reliability, occupied small area base on industry-leading Qualcomm MDM9206 platform.

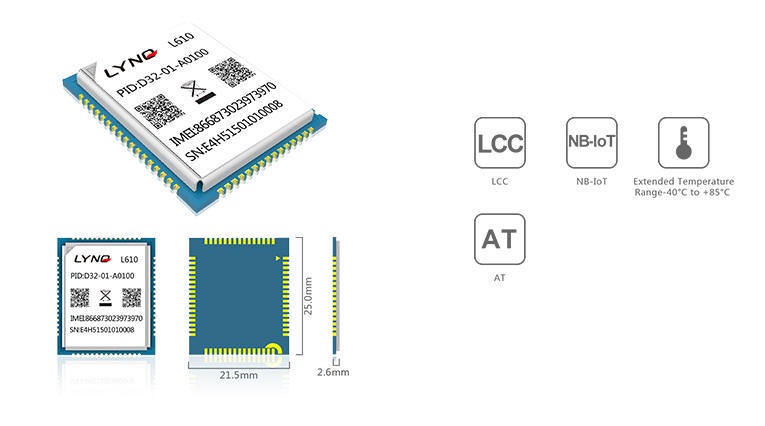

The size of L610 is extremely small, it is only 21.5 x 25.0 x 2.6 mm with LCC package, It is cost competitive and high integrated which make it convenient for customer to design their own application products. It can be widely used for various products and equipment of IoT.
Feature
General Features
Frequency Bands
L610-C
Support NB-IOT:B3/B5/B8
L610-E
Support NB-IOT:B8/B20
Support NB-IOT:B3/B5/B8
L610-E
Support NB-IOT:B8/B20
AT command
Voltage range
3.4 ~ 4.2V (3.8V is recommended)
Operating temperature range
40 ~ +85℃
Storage temperature range
-45 ~ +90℃
Dimensions
21.5mmX25.0mmX2.6mm
Packaging
LCC
Weight
Approx 2 g
Specifications for Data
LTE-CATM1
Max. 1Mbps(UL)
Max. 1Mbps(DL)
Max. 1Mbps(DL)
Interfaces
UART
USIM(3V/1.8V)
GPIO
USB 2.0
ADC
SPI
I2C
NETLIGHT
POWER KEYT
RESET
Other Features
Update firmware by USB
TCP/UDP/COAP/ FTP/HTTP/ SMTP
Certification
3C*/TA*/CE*/ROHS*
