L651 Introduction
Overview
L651 is a NB-IoT+GSM/GPRS+(GNSS) module for LCC package,with stable and reliable performance. It supports low/ mid/high bands operation defined by the 3GPP R13/R14, four frequency GSM/GPRS (850/900/1800/1900) Module and integrated high-performance global positioning navigation chip.

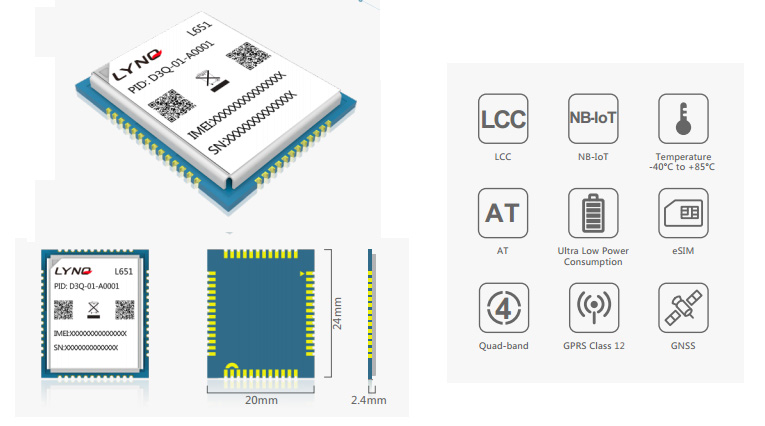

L651 size is only 24*20*2.4mm and very convenient for SMT. It can meet the needs of customers for small module products and facilitate customers to reduce product size and optimize product costs. It can be widely used for various products and equipment of NB-IoT+GSM/GPRS+(GNSS).
Feature
Main Features
L651C
NB-IoT+GSM/GPRS
L651G
NB-IoT+GSM/GPRS+GNSS
NB-IoT support frequency bands
Band3/5/8
GSM support frequency bands
GSM/GPRS 850/900/1800/1900 MHz
GSM 2/2+ standard
Class 4 (2W @850/900 MHz)
Class 1 (1W @1800/1900 MHz)
NB-IoT Output Power
23dBm ±2dB
GSM Output Power
GSM850/GSM900 33dBm ±2dB
DCS1800/PCS1900 30dBm ±2dB
DCS1800/PCS1900 30dBm ±2dB
NB-IoT receiving sensitivity
TBD
GSM receiving sensitivity
GSM850/GSM900≤-109dBm
DCS1800/PCS1900≤-108dBm
DCS1800/PCS1900≤-108dBm
GNSS
GPS+BEIDOU(Glonass)
Support AT command
Operation Temperature Range
-40℃ ~ +85℃
Storage temperature range
-45 ℃ ~ +90℃
Supply Voltage Range
3.4 ~ 4.2V (3.8V Typ)
Dimensions
24*20*2.4mm
Package
LCC
Weight
Approx 1.5 g
Data transmission
Support Cat NB1
DL：TBD
UL：TBD(DL)
UL：TBD(DL)
pecification for GNSS
Receiver type
64 tracking
Max update rate
10Hz
Sensitivity
Tracking：-160dBm
Reacquisition：-158dBm
Reacquisition：-158dBm
Time-TO-First-FIX
Cold starts：25s(typical)
Hot Starts：<1s
Hot Starts：<1s
Accuracy
Automatic Position：2.0m CEP
Speed：0.1m/s
Speed：0.1m/s
Interfaces
UART
SIM（3.0V/1.8V） or eSIM
IIC
ADC
SPI
GPIO
NB-IoT/GSM Antenna
GNSS Antenna
Power consumption
PSM：4uA@3.8V
DRX：1.56mA@3.8V/1.28s
Other Features
Firmware Update：Firmware updated via UART
Support PSM and eDRX mode
Support UDP/TCP/IP/MQTT/HTTP/CoAP/
TLS/LwM2M/OneNet/FOTA*
Certification
CCC*/TA*/RoHS*
