T100 Introduction

Overview

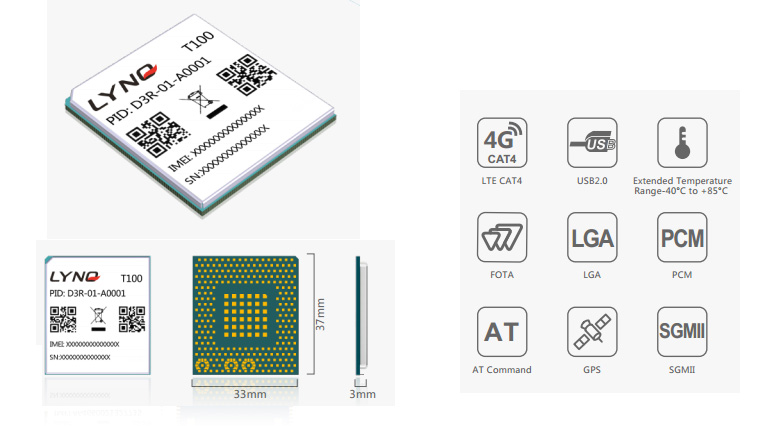

T100 is a automotive grade LTE module based on qualcomm MDM9628 platform. It is designed and manufactured in strict accordance with IATF16949 quality standard.

T100 is amulti-band FDD-LTE/TDD - LTE/TD-SCDMA/WCDMA/CDMA type module and completely compatiblewith existing EDGE and GSM/GPRS network.The size of T100 is 33 x 37 x 3 mm with LGA package, T100 has excellent protection for ESD and EMI,It is designed specifically for the automotive industry and poor working environment application scenarios.

T100 has extensible interface (USB, UART,SGMII PCM, etc.) and function (Windows XP, Windows Vista, Windows 7, Windows 8, Linux, Android driver), It can be widely used for various products and equipment which have wireless network function ,and it is especially suitable for automotive products and related applications.

Feature

Main Features
Frequency Bands:
FDD LTE
B1/B3/B5/B8
TDD LTE
B34/B38/B39/B40/B41
UMTS
B1/B8
TDSCDMA
B34/B39
CDMA/EVDO
BC0
GSM
900/1800 MHz
LTE cat4
AT command
3 GPP TST27.007, 27.005 and enhanced the AT command
Voltage range
3.4 ~ 4.2V (3.8V is recommended)
Operating temperature range
-40 ~ +85℃
Storage temperature range
-45 ~ +90℃
Dimensions
33.0mmX37.0mmX3.0mm
Package
LGA
Weight
About 8 g
Specifications for Data transfer
LTE
Max. 50Mbps(UL)
Max. 150Mbps(DL)
TD-HSDPA/HSUPA
Max. 2.2 Mbps(UL)
Max. 4.2 Mbps(DL)
TD-SCDMA
Max. 128Kbps(UL)
Max. 384Kbps(DL)
HSPA+
Max. 5.76 Mbps(UL)
Max. 42 Mbps(DL)
UMTS
Max. 384Kbps(UL/DL)
CDMA
Max. 307.2Kbps(UL/DL)
1xEV-DO
Max. 1.8Mbps(UL)
Max. 3.1Mbps(DL)
EDGE Class
Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
GPRS
Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Interfaces
UART
SIM card(3V/1.8V)
GPIO
USB 2.0
ADC
SD Card
SDIO(for WIFI)
SGMII
PCM
SPI
I2C
NTELIGHT
POWER KEY
RESET
Main antenna
Diversity antenna
GNSS antenna
Other Features
USB driver for Microsoft Windows XP/Vista /7/8
USB driver for Linux/Android
Android RIL support
Update firmware by USB
TCP/UDP/PPP/FTP/FTPS/HTTP/HTTPS/SSL/TLS/SMTP/POP3/ MMS/MQTT
eCall
FOTA
